Stone jaw crusher

Processing Capacity: 5-300t/h

Feeding size: 125-1020mm

Applied material: ≤320 MPa

Application field: mining,smelting,building materials,roads,railways,water conservancy,chemical industy,etc.

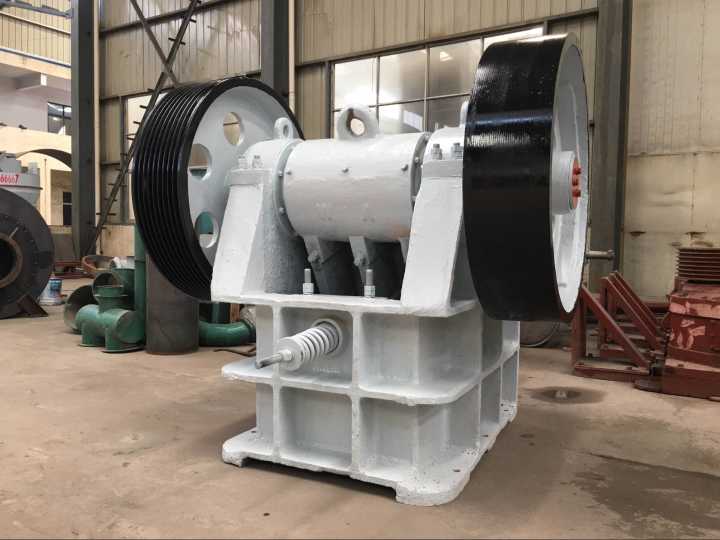

Stone jaw crusher

Product Description

Jaw Crusher is one of the most popular stone-crushing equipments in the world.

 Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 350MPa.      construction equipment jaw crusher

 It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries and etc. Many models are available according to your different fineness requirements.

 In the ore dressing process, jaw crusher is the key role in the beginning of ore crushing stages, it is the key equipment of coarse crushing and find crushing before ore grinding.


Performance advantages of jaw crusher

1. The "V" shaped crushing chamber is deep and has no dead zone, so it is not easy to block materials. The crushing ratio is large and the feeding capacity and output are improved;

2. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple;

3. Energy saving of equipment: energy saving of single machine is 15% - 30%, energy saving of system is more than double;


4. The discharge port has a wide range of adjustment, which can meet the requirements of different users. The finished product has uniform particle size, less impurities, no over comminution and less needle flakes;

5. The crushing chamber is strictly sealed to avoid dust leakage, and is equipped with dust removal and noise reduction system, so the noise and dust are low.

Structure of jaw crusher

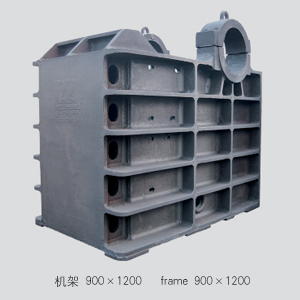

  1. Frame: the frame is a four wall rigid frame with upper and lower openings. It is used to support the eccentric shaft and bear the reaction force of broken materials. It is required to have sufficient strength and rigidity. Generally, cast steel is cast as a whole, and high-quality cast iron can also be used to replace cast steel for small-scale machines. The frame of large-scale machine needs to be cast in sections, and then firmly linked into a whole by bolts, so the casting process is complex.


2. Jaw plate and side guard plate: both fixed jaw and movable jaw are composed of jaw bed and jaw plate. Jaw plate is the working part and is fixed on jaw bed with bolts and wedge iron. The jaw bed of the fixed jaw is the front wall of the frame. The movable jaw bed is suspended on the shaft and has enough strength and rigidity to bear the crushing reaction force, so it is mostly cast steel or cast iron.

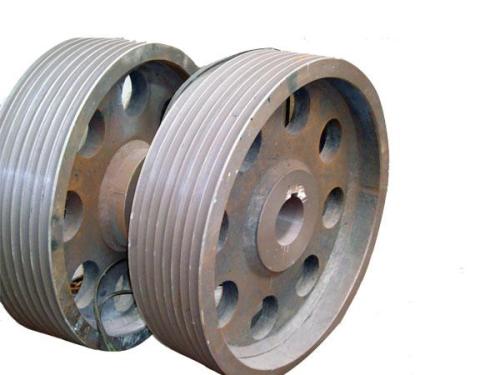

3. Transmission parts: eccentric shaft is the main shaft of jaw crusher. It is made of high carbon steel due to huge bending torque. The eccentric part shall be finished, heat treated and Babbitt alloy shall be used for bearing liner. One end of the eccentric shaft is equipped with a pulley and the other end is equipped with a flywheel.

4. Adjusting device: the adjusting device includes wedge type, backing plate type and hydraulic type, etc. generally, wedge type is adopted, which is composed of front and rear wedges. The front wedge can move back and forth to support the backward pushing plate; the rear wedge is an adjusting wedge, which can move up and down, and the inclined plane of the two wedges is in reverse direction, and the size of the outlet is adjusted by the screw to move the rear wedge up and down. The adjustment of discharge port of small jaw crusher is realized by increasing or decreasing the number of gaskets between thrust plate support and frame.

5. Flywheel: the flywheel of jaw crusher is used to store the energy during the empty stroke of jaw, and then used for industrial formation, so that the work of machinery tends to be uniform. The pulley also plays the role of flywheel. The flywheel is often made of cast iron or cast steel, and the flywheel of small-sized machine is often made into integral type. Attention should be paid to the static balance when the flywheel is manufactured and installed.


6. In general, grease is injected into the bottom of the bearing by manual lubrication device, which is difficult to be lubricated through the open center groove of the bearing bush.

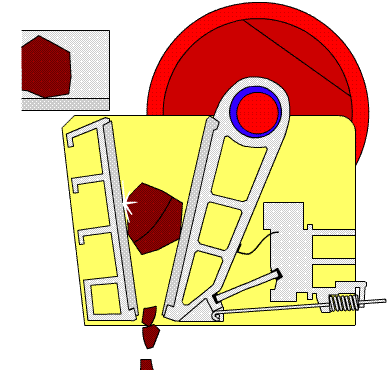

Working principle

In the process of the movable jaw swinging around the suspension center and the fixed jaw, the material between the two jaw plates will be crushed, split and bent. At the beginning, the pressure is small, so that the volume of the material is reduced, and the materials are close to each other and squeezed; when the pressure rises to exceed the strength of the material, it will break. Conversely, when the movable jaw leaves the fixed jaw and swings in the opposite direction, the material moves downward by its own weight. Each cyclical movement of the movable jaw causes the material to be crushed once and sent down for a certain distance. After several cycles, the crushed materials will be discharged from the discharge port. With the continuous rotation of the motor, the mobile jaw is broken and the materials are crushed and discharged in a periodic motion to realize mass production.


Technical Data

Type

Feed Opening(mm)

Capacity(t/h)

Motor Power

Total weight(t)

PE 150*250

150*250

1-3

5.5

0.8

PE 200*300

200*300

2-6

7.5

1.2

PE 200*350

200*350

3-10

11

1.5

PE 250*400

250*400

5-20

15

2.8

PE 400*600

400*600

16-60

30

7

PE 500*750

500*750

40-110

55

12

PE 600*750

600*750

80-240

55

15.8

PE 600*900

600*900

50-180

55

17

PE 800*1060

800*1060

130-330

110

29.8

PE 900*1200

900*1200

230-390

110

33

Jaw crusher manufacturer

Zhengzhou shuguang heavy machinery is a heavy industry manufacturer with a production history of nearly 30 years. The jaw crusher produced by the company has the advantages of long life, more durable, simple operation, uniform particle size, less powder, and low energy consumption. At the same time, the manufacturer provides users with one-stop after-sales service, full free selection guidance, transportation and installation, operation training, fault door-to-door repair, regular maintenance, user return visits and other series of services to create a more trusted impact crusher manufacturer.
