Mobile cone crushing plant

Processing Capacity: 30-550t/h

Feeding size: 300-700mm

Applied material: All kinds of ore materials, construction waste, coal, industrial solid waste and so on.

Application field: construction waste, sand and gravel yard, mining and other fields, and can carry out coarse crushing, medium crushing and fine crushing processing

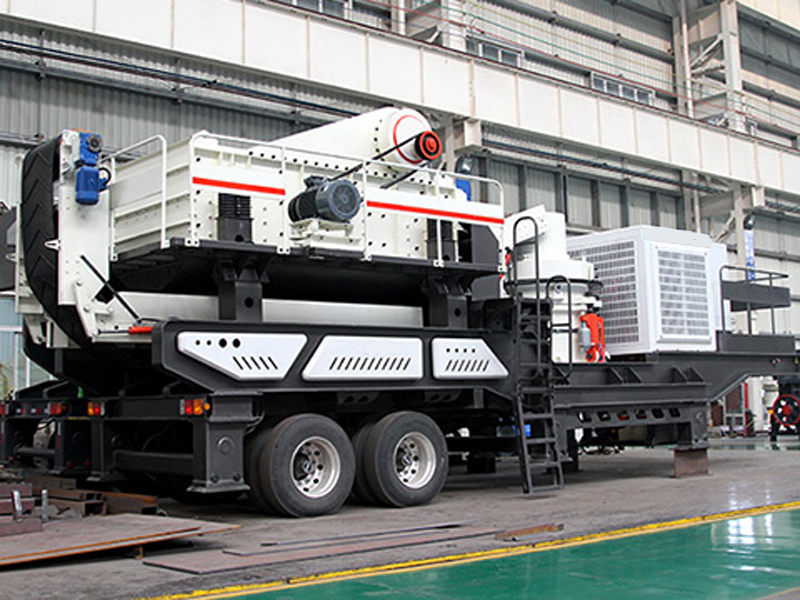

Mobile cone crushing plant

Introduction

The mobile cone crushing station adopts vehicle mounted traction, crushing and screening equipment integration and whole machine driving. It can be moved to the material site for crushing, eliminating the material transportation link and eliminating the obstacles caused by the bad crushing site. At present, it has been widely used in construction waste, sand and gravel yard, mining and other fields, and can carry out coarse crushing, medium crushing and fine crushing processing. The core crushing equipment is round cone crusher, cone crusher and other related equipment can form a multi-stage crushing and screening system, the specific use of several crushing and screening system should be determined according to the needs of users.

Working principle

All parts of mobile cone crushing plant include: solid frame, hydraulic cone crusher, feeder, vibrating screen, conveyor belt, motor and control box, etc.

The materials are evenly transported to the cone crusher by the feeder. After the initial crushing, the cone crusher forms a closed-circuit system through the circular vibrating screen to realize the circular crushing of the materials. The finished materials are output by the conveyor for continuous crushing operation. The moving crushing station of tire cone crushing + vibrating screen can remove the circular vibrating screen according to the actual production needs, and realize the primary crushing of materials directly. It is used with other crushing equipment, which is convenient and flexible.

Product advantages

Mature modular design

The new modular design concept is adopted for the equipment, and a frame is used for various models, which can easily realize the free exchange between different host systems of the same model. Only by replacing the host system, can the different production requirements be easily met, and the diversified design is more convenient.

The configuration scheme is flexible and diversified

The equipment space system is fully equipped, which can work alone in one section of crushing, and can also work together with multiple equipment such as mobile jaw crusher and mobile sand making machine to meet the needs of multiple crushing and screening combination.

Comprehensive combination, personalized scheme customization

The mobile cone crushing plant consists of seven modules and 24 models, which are fully combined. The output, feeding and unloading of the main machine can be selected according to the needs. The customized scheme highlights the humanized design.

High efficiency, intelligent, easy operation

The flexible parking system can quickly enter the working mode. At the same time, the hydraulic system can control the feeding and unloading of equipment and the folding of conveyor belt. The PLC intelligent operating system is safe and easy to operate.

High environmental protection efficiency, energy saving and oil saving

Water spray dust suppression device, iron removal device and noise reduction equipment are added to the equipment to meet the environmental protection standard without pressure. The hybrid operation of oil and electricity is adopted to save energy and oil. Various energy supply modes enable users to choose more freely and operate more efficiently.

Technical parameter

Project M3S1848CS75 M3S1860CS16 M3S1860HP220
Transport length(mm) 14000 16000 16000
Transport width(mm) 3100 3100 3100
Transport height(mm) 4300 4500 4500
Maxium length(mm) 14000 16400 16400
Maxium width(mm) 3400 3400 3400
Maxium height(mm) 4700 4700 4700
Weight(t) 34.5 49.5 41
Crusher model
CS75 CS160 HP220
Vibrating screen model 3YZS1848 3YZS1860 3YZS1860
